| Specificații hardware |
| Conector de rețea |
8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port |
4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4) |
| Schimbarea arhitecturii |
Store and forward |
| MAC Address Table |
8K MAC address table with auto learning function |
| Buffer de date |
1Mbit |
| Comutatorul Fabric |
16Gbps / non-blocking |
| Capacitatea de comutare |
11.9Mpps@64Bytes |
| Jumbo Frame |
9Kbytes |
| Controlul debitului |
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
|

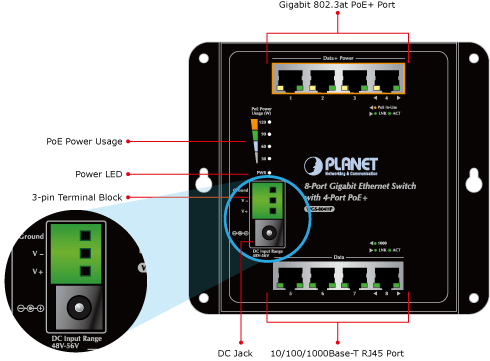

| Indicatoare LED |
Power LED: Power (Green)

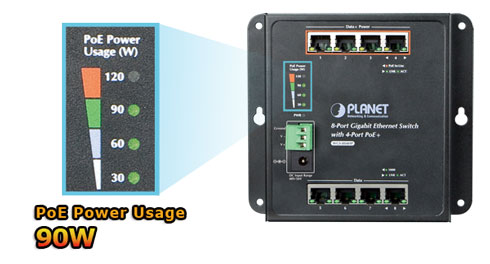

PoE Power Usage LED: 30W, 60W, 90W, 120W (Green)
PoE Port(Port-1 to Port-4): PoE-in-Use (Orange)
LNK/ACT (Green)
10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green)
LNK/ACT (Green)
|
| Conector |
■ Removable 3-pin terminal block for power input
- Pin 1/2 for DC Power
- Pin 3 for earth ground
■ DC power jack with 2.0mm central pole
|

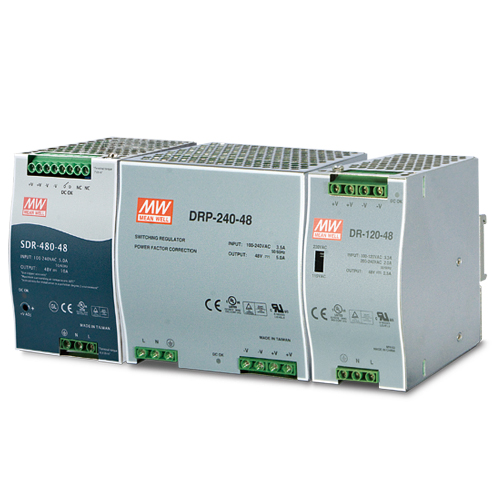

| Cerinte de putere |
48~56V DC, 3A (max.) |
| Consumul de energie |
140 watts / 478BTU |
| Protecția ESD |
6KV DC |
| Protecția EFT |
6KV DC |
| împrejmuire |
IP30 metal |
| Dimensiuni (L x Î x H) |
148 x 134 x 25 mm |
| Greutate |
510g |
| Instalare |
Wall mount, magnetic wall mount and DIN-rail kit |
| Putere peste Ethernet |
| PoE Standard |
IEEE 802.3af / 802.3at Power over Ethernet PSE |
| Tip de alimentare PoE |
End-span |
| Putere de ieșire PoE |
■ IEEE 802.3af Standard
- Per port 48V~56V DC (depending on the power supply), max. 30 watts
■ IEEE 802.3at Standard
- Per port 50V~56V DC (depending on the power supply), max. 30 watts
|
| Alocarea pinilor de putere |
1/2(+), 3/6(-) |
| * Bugetul puterii PoE |
120 watts (depends on power input) |
| Max. Numărul PD de clasa 2 |
4 |
| Max. Numărul PD de clasa 3 |
4 |
| Max. Număr de Clasa 4 PD |
4 |
| Conformitate standard |
| Standard de conformitate |
IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3ab: Gigabit Ethernet
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
IEEE 802.3at: High Power over Ethernet
|
| Reglementarea conformității |
FCC Part 15 Class A, CE |
| Testul de stabilitate |
IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
|
| Mediu inconjurator |
| De operare |
Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
| Depozitare |
Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
| Accesorii |
| Accesorii standard |
■ User’s manual x1
■ Magnetic kit x 1
■ DIN-rail kit x 1
■ Wall-mounted Kit x 1
■ Dust cap x 8
■ 3-pin Terminal Block Connector x 1 |
| * Puterea reală poate varia de la sistemul de alimentare externă cu un buget de maximum 120 wați pen |
