| Specificații hardware |
| Portul de rețea |
16 10/100/1000Base-T Auto-MDI/MDI-X RJ-45 ports |
| PoE Inject Port |
16-Port with 802.3af / 802.3at PoE injector function |
| Afișaj LED |
System
Power (Green)
PoE Ethernet Interfaces
PoE In-Use (Orange)
10/100/1000Base-T Ports
1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Orange)
|
| Schimbarea arhitecturii |
Store and Forward switch architecture |
| Adresa mac |
8K MAC address table with Auto learning function |
| Comutatorul Fabric |
32Gbps |
| Capacitatea de comutare |
23.8Mpps@64Bytes |
| Dimensiunea pachetului Jumbo |
9K Bytes |
| Controlul debitului |
Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex |
| Necesitatea de alimentare |
AC 100~240V, 50/60Hz, 3.5A max. |
| Consumul de energie |
Max. 260 Watts / 885 BTU |
| Dimensiune (L x Î x H) |
445 x 207 x 45 mm (1U height) |
| Greutate |
2.54kg |

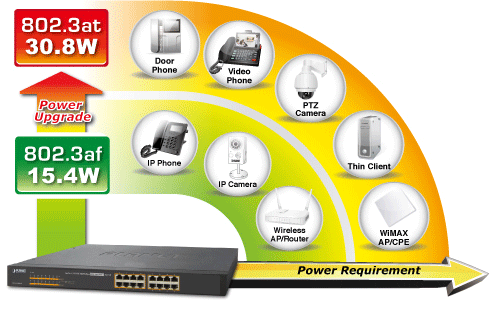

| Putere peste Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Enhancement Power over Ethernet / PSE |
| Putere de ieșire PoE |
Per Port 52V DC, 300mA. Max. 15.4 Watts (IEEE 802.3af)
Per Port 52V DC, 590mA. Max. 30 Watts (IEEE 802.3at) |
| PoE Power Buget |
220 Watts |
| Numărul de PD, 7Wați |
16 |
| Numărul de PD, 15.4Watts |
14 |
| Numărul de PD, 30.8Watts |
7 |
| Mediu inconjurator |
| Mediu de lucru |
0 ~ 50 Degree C |
| Mediul de stocare |
-40 ~ 70 Degree C |
| Umiditatea de funcționare |
5 ~ 95%, relative humidity, non-condensing |
| Depozitare Umiditate |
5 ~ 95%, relative humidity, non-condensing |
| Conformitate standard |
| Standard de conformitate |
IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3az | Ethernet Fast Ethernet Flow Control Power over Ethernet Enhanced Power over Ethernet Pre-Energy-Efficient Ethernet |
|
| Reglementarea conformității |
FCC Class A, CE |
